Real workshop photos of Yuantuo coil and furnace body assembly—fixture alignment, insulation details, cable routing, and heating section preparation.

induction coil manufacturing, induction furnace body, coil assembly, fixture alignment, insulation process, workshop assembly, factory visit inspection, induction heating line manufacturer, heating section setup

For most buyers, a factory visit is not about “nice presentations”—it’s about seeing real assembly details.
This post shares Yuantuo’s workshop footage of coil and furnace body assembly: alignment fixtures, insulation handling, and wiring practices.
These are the same checkpoints customers use to judge build quality and long-term stability before placing an order.

When customers plan a factory visit, they usually want to confirm one thing:
Can this supplier truly build an induction heating line, or are they only reselling equipment?

One of the most direct answers is found in the coil and furnace body section.
These parts define heating efficiency, temperature stability, and serviceability—especially in continuous-duty production.

That’s why Yuantuo publishes real factory footage of coil and furnace body assembly.
In today’s update, you can see how we build the heating section with alignment and maintenance in mind.

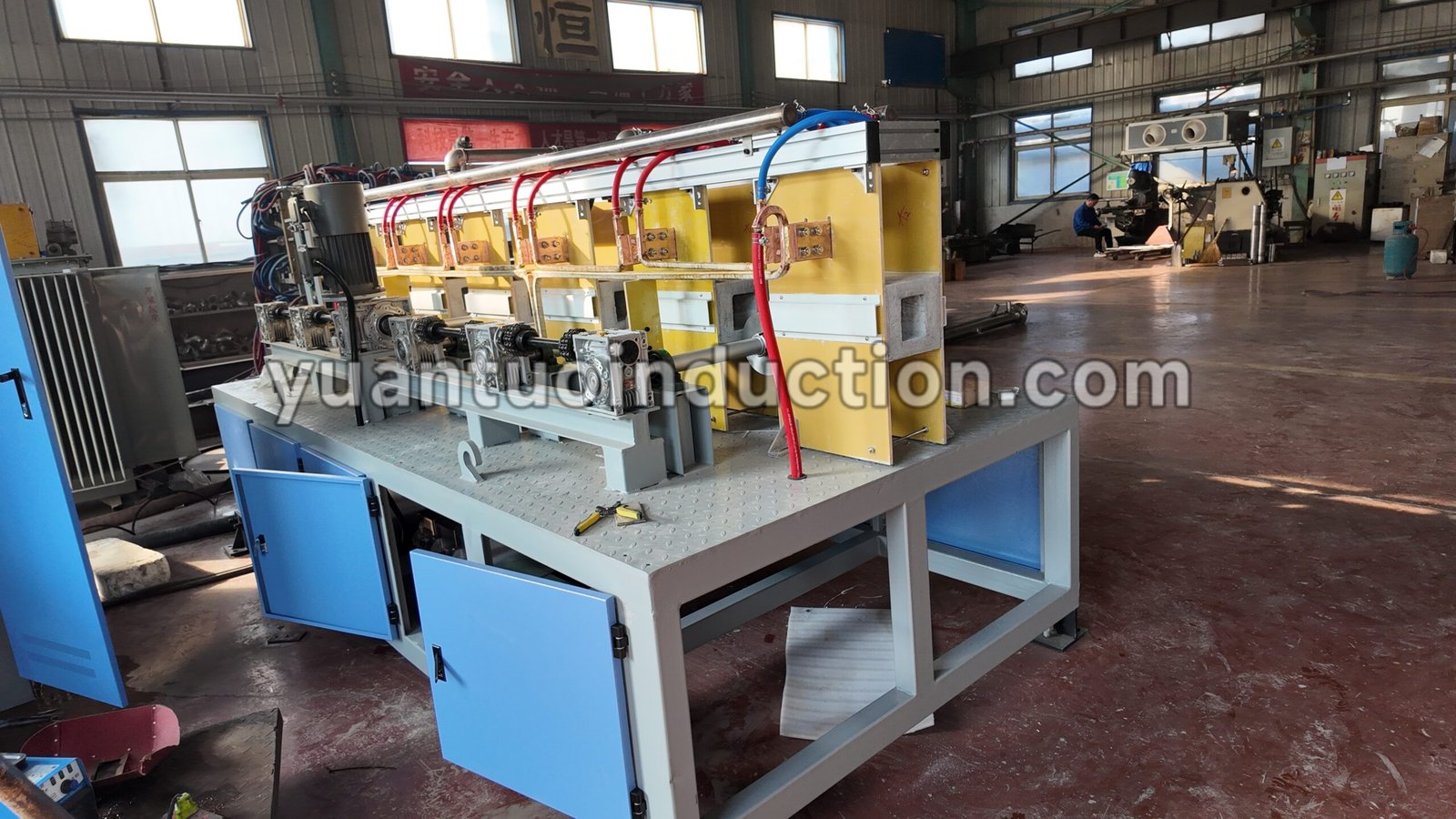

【Image 1｜Coil Section Setup & Fixtures】

Coil section setup with alignment fixtures
During assembly, our team focuses on:
l coil positioning and clearance control
l fixture alignment for repeatable geometry
l insulation protection and fastening details

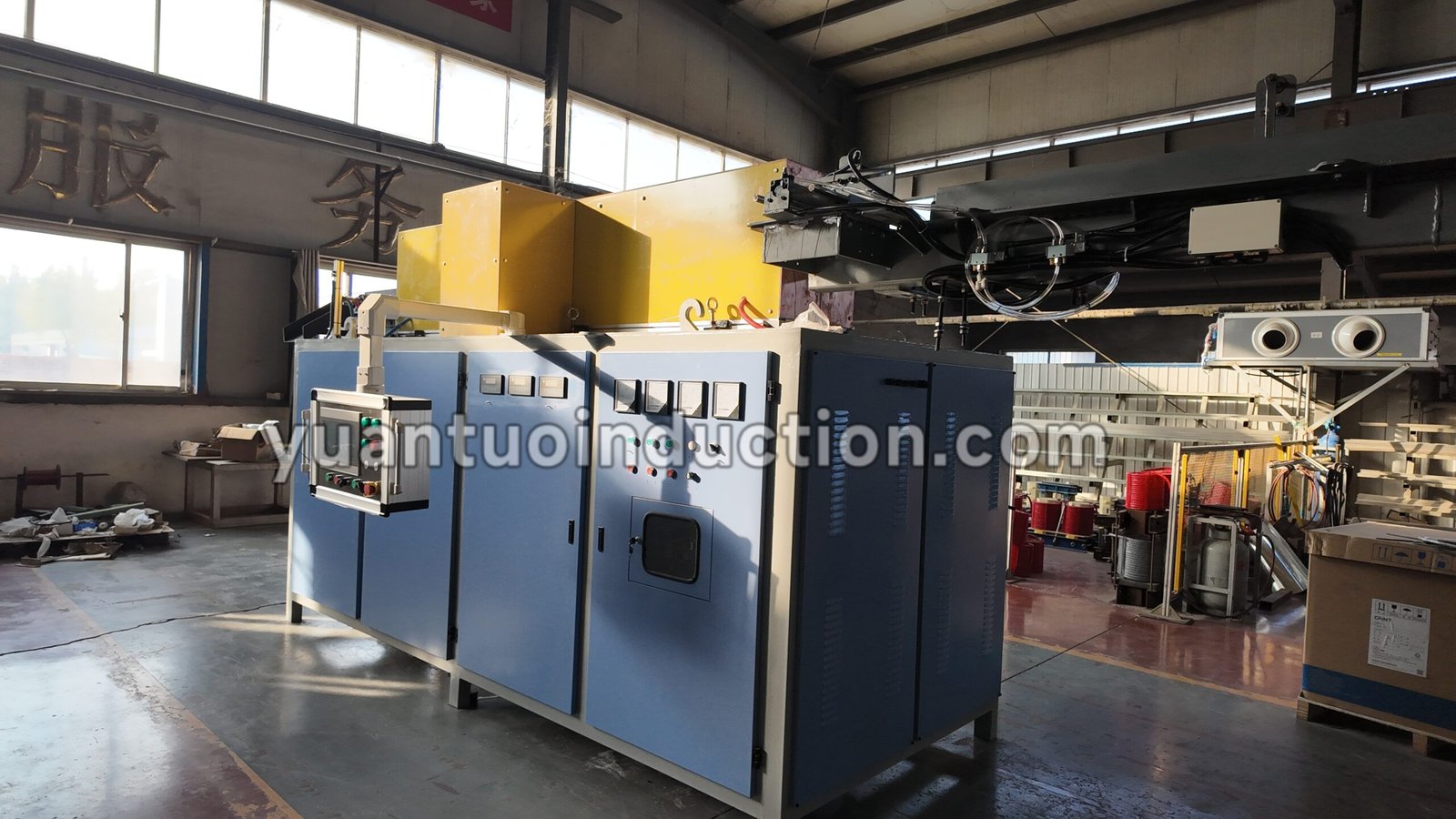

【Image 2｜Furnace Body Installation & Alignment】

Furnace body installation and mechanical alignment
To support stable operation, we ensure:
l straightness and alignment along the material path
l access points for inspection and maintenance
l robust supports for long-term vibration resistance

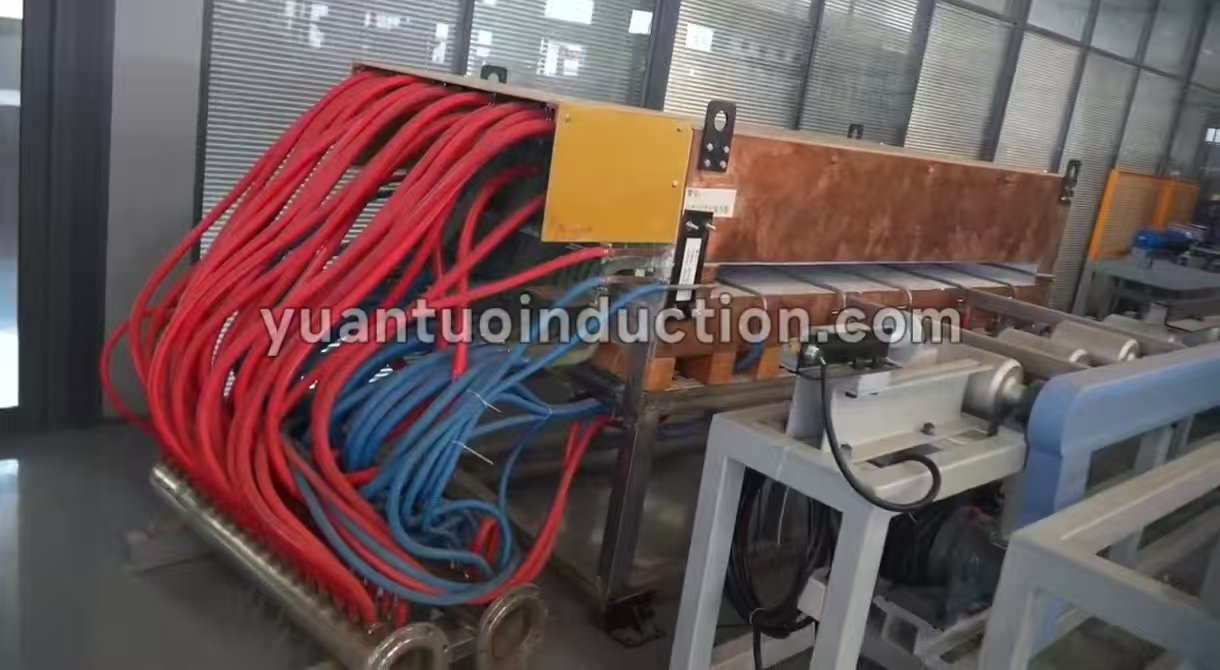

【Image 3｜Cable Routing & Labeling Practices】

Cable routing, labeling, and serviceability
For easier commissioning and service, we prepare:
l clean routing and separation of power/control cables
l clear labeling for fast troubleshooting
l consistent cable entry/exit layout

【Image 4｜Heating Section Ready for Integration】

These practices apply across different Yuantuo lines, including steel bar Q&T, bar surface hardening, steel pipe Q&T (including OCTG), billet/slab temperature equalizing (boost), and steel ball preheating systems. You can explore related solutions here:
Product Catalog: https://yuantuoinduction.com/products
Workshop & Project Videos: https://yuantuoinduction.com/videos/
About Yuantuo: https://yuantuoinduction.com/about-us/

To size an induction heating line properly, we usually need three inputs: workpiece size, target temperature range, and throughput/line rhythm.
If you share these parameters, our engineer can recommend a suitable configuration and layout direction via:
https://yuantuoinduction.com/contact-us/
