One of the most common questions when planning a grinding ball production project is:
“We need to produce 60 mm steel balls. What production line do we need?”
Ball diameter is certainly an important parameter, but it is not enough to determine the complete configuration of a customized hot rolled steel ball production line.
A hot rolled steel ball is not produced by one isolated machine.

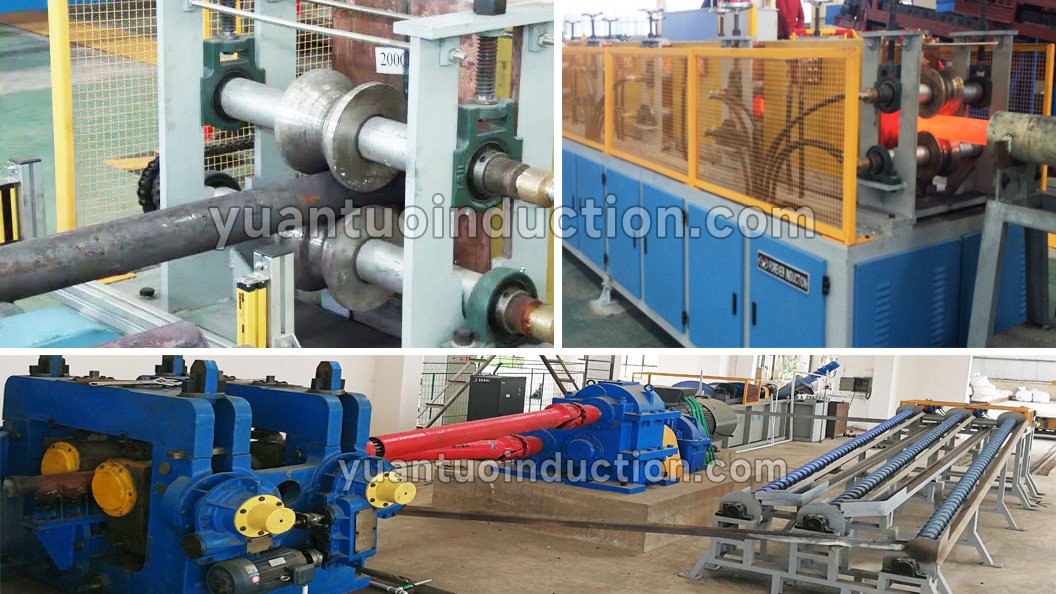

In a typical production process, round steel bars are heated to a suitable rolling condition before entering the rolling mill. The heated bar is then continuously formed into balls between specially designed rolls. Depending on the required final properties, the hot rolled balls may subsequently undergo controlled cooling, quenching and tempering.
Steel Bar Loading → Induction Heating → Temperature Measurement → Ball Rolling → Hot Ball Conveying → Quenching / Cooling → Tempering, if required
The steel ball diameter is only one starting parameter in this complete production chain.
Different grinding ball diameters require appropriate round steel bar specifications.
Before determining the production line configuration, it is therefore important to confirm:
For example, a production line designed for only one ball diameter may have different requirements from a line intended to cover:
50 mm / 60 mm / 70 mm / 80 mm
grinding balls.
For multi-size production, the engineering stage should also consider:
Published rolling-line specifications also show that different rolling mill configurations cover different ball-diameter ranges and production rates, reinforcing why ball size and production requirements need to be considered together.
Before hot rolling, the round steel bar needs to reach a thermal condition suitable for plastic deformation.
If the temperature is too low, deformation resistance increases. If the temperature distribution is unstable or inappropriate for the selected material and rolling process, stable forming can also become more difficult.
Industrial grinding-ball production lines therefore use controlled heating before the steel bar enters the rolling mill. Induction heating is one method used for this continuous pre-rolling heating stage.
For engineering purposes, the important question is not simply:
“Can the steel bar reach the target temperature?”
A more useful question is:
“Can the bar continuously reach the required rolling condition at the feed rate demanded by the ball rolling mill?”
The heating section therefore needs to consider:
For continuous production, repeatability from bar to bar is more important than achieving the target temperature on only one test piece.
This is one of the most important aspects of complete-line engineering.
Suppose the induction heating section can deliver heated steel bars faster than the rolling mill can process them.
The result may be waiting between processes and poor production synchronization.
The opposite situation is also undesirable.
If the rolling mill has sufficient forming capacity but the upstream heating system cannot supply properly heated bars at the required rate, the rolling mill must wait for material.
The complete production rhythm therefore needs to coordinate:
Steel Bar Feeding Rate → Induction Heating Speed → Bar Outlet Temperature → Rolling Mill Feeding Speed → Steel Ball Forming Rate
Available production-line descriptions similarly treat heating and rolling as consecutive continuous stages rather than unrelated machines.
For this reason:
The engineering objective is not simply to combine an induction heater with a ball rolling mill. Their production capacities and operating takt must be matched.
Consider two customers producing the same 60 mm grinding ball from the same material.
However:
Project A requires 3 t/h
while
Project B requires 8 t/h.
The two projects should not automatically use the same production line configuration.
Higher hourly output means that more steel must be:
The complete capacity chain therefore needs to be evaluated:
Raw Material Feeding Capacity → Induction Heating Capacity → Ball Rolling Capacity → Hot Ball Conveying Capacity → Downstream Heat Treatment Capacity
Actual grinding-ball manufacturers also operate continuous lines where heating, rolling and heat treatment capacities form parts of the same production system.
This is why required production capacity in t/h is one of the essential parameters for a customized steel ball production line.
Grinding balls can be produced from different carbon and alloy steel grades.
The material composition and hardenability influence the appropriate heating and subsequent heat treatment conditions.
This means that a production line should not assume that every steel grade can use exactly the same heating, rolling and heat treatment parameters.
At the engineering stage, it is useful to confirm:
The selected rolling temperature and subsequent heat treatment should be established according to the actual steel grade and product requirements rather than using one fixed value for every project.
Hot-rolled grinding-ball process references likewise connect material, rolling conditions and subsequent quenching/tempering with the final product properties.
The steel ball rolling mill is a key machine, but stable production depends on the processes both before and after rolling.
A complete project may include:

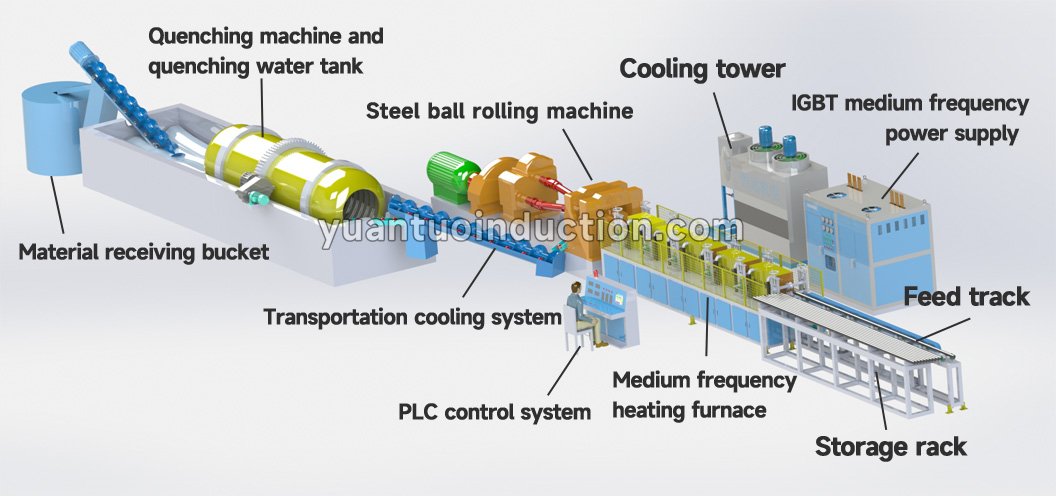

Raw Material Storage → Automatic Steel Bar Loading → Continuous Induction Heating → Online Temperature Measurement → Steel Ball Rolling → Hot Ball Conveying → Cooling / Quenching → Tempering → Finished Ball Conveying
Industry production descriptions show this same general integration of bar heating, rolling and subsequent heat treatment.
Therefore, for a customized project, it is more practical to evaluate the complete production capacity and process connection rather than select several independent machines first and try to connect them later.
For an initial engineering evaluation, it is recommended to provide:
| Parameter | Information Required |
|---|---|
| Ball Diameter | Minimum, maximum and common sizes |
| Steel Bar Diameter | Raw material diameter for each ball size |
| Steel Bar Length | Common raw material length |
| Material | B2, B3, B6, 65Mn or other steel grades |
| Rolling Temperature | According to material and process requirements |
| Production Capacity | t/h |
| Ball Size Range | Single size or multiple sizes |
| Changeover | Required changeover frequency |
| Heat Treatment | Quenching and/or tempering requirements |
| Final Properties | Target hardness and other requirements |
| Plant Conditions | Installation space and line layout |
The more complete these parameters are, the more accurately engineers can match the bar heating capacity, rolling takt and downstream heat treatment sections.
A practical engineering sequence is:
Required Steel Ball Size → Steel Bar Size & Material → Rolling Temperature → Required Tons per Hour → Steel Bar Induction Heating Capacity → Ball Rolling Mill Takt → Hot Ball Conveying → Quenching / Tempering → Complete Line Automation
In other words, the correct approach is not:
Select an induction furnace first, then find a rolling mill and connect them together.
Instead, the target product, material and required capacity should be defined first, and the capacities of each production section should then be matched accordingly.
Usually not. The steel bar specification, material grade, required production capacity, ball size range, rolling process and downstream quenching/tempering requirements should also be confirmed.
The round bar needs to reach a suitable thermal condition for hot deformation before entering the rolling mill. Continuous heating also needs to supply the rolling process at the required production rate.
It can be engineered for multiple sizes within an appropriate range, but bar specifications, rolling mill configuration, heating parameters, production speed and changeover requirements all need to be evaluated.
Because the required output affects the capacities of steel bar feeding, induction heating, ball rolling, conveying and downstream heat treatment.
Rolling mainly forms the steel bar into balls. Depending on the steel grade and required product properties, subsequent heat treatment is used to establish the required hardness and mechanical performance.
Steel ball diameter is only the starting point for designing a customized hot rolled grinding ball production line.
For a hot rolled steel ball, grinding ball production or steel bar induction heating before rolling project, it is recommended to provide:
ball diameter range, steel bar diameter and length, material grade, required production capacity, rolling temperature, target hardness, and whether downstream quenching and tempering are required.
Based on these production conditions, the automatic loading, steel bar induction heating, online temperature measurement, rolling mill takt, hot ball conveying, quenching, tempering and automatic control systems can then be matched as one integrated production line.
The objective is not simply to connect several machines together, but to ensure that heating capacity, rolling capacity and downstream heat treatment capacity operate at a coordinated continuous production rate.
