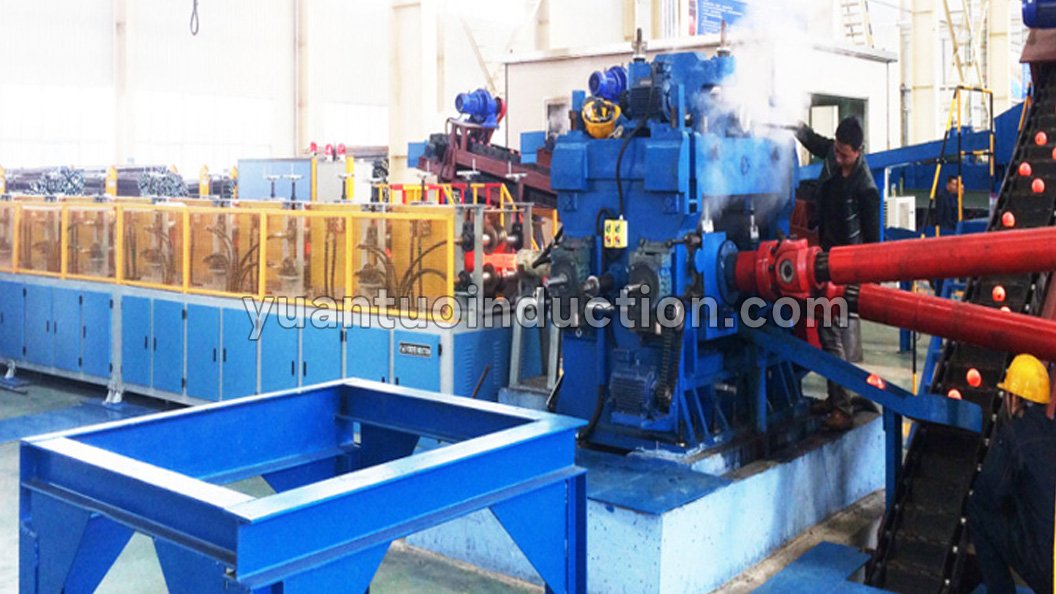

Induction Heating System for Small & Medium Steel Ball Hot Rolling: Core Heating Equipment with Outstanding Advantages

1 Industry Position

Preheating of blanks is a pre-process key step determining the appearance, metallographic structure and yield of finished products during hot rolling of small and medium steel balls. Yuantuo IGBT induction heating system specially matched for steel ball hot rolling adopts electromagnetic eddy current heating technology. Featuring fast temperature rise and precise temperature control, it perfectly matches the preheating process of 5–100 mm small and medium steel ball blanks before rolling, improving finished product quality and overall line productivity simultaneously.

2 Working Principle of the System

The whole induction heating system operates on the electromagnetic eddy current effect. Alternating current passes through customized induction coils to form alternating electromagnetic fields. When steel ball blanks pass through the magnetic field, eddy currents are induced inside the blanks. Heat is generated by the inherent resistance of metal, realizing high-efficiency conversion from electric energy to thermal energy. The blanks obtain uniform through-heat in a short time to reach the forming temperature required by hot rolling.

Compared with traditional heating equipment such as gas furnaces and resistance furnaces, the system achieves higher energy conversion efficiency and cuts heating energy consumption per steel ball. The whole process operates without open flame, eliminating fire and scald risks caused by open fire heating and improving workshop safety from the heat source side.

3 Core Technical Advantages

Rapid heating and uniform stable temperature

The blank heating rate is high, reaching the rolling temperature of 1100–1250 ℃ within a short time and greatly shortening single-piece production cycle. Equipped with zoned temperature control and rotary feeding structure, the temperature difference between the surface and core of steel ball blanks is tiny. Defects such as material shortage, cracks and elliptical deformation during rolling are reduced, greatly improving dimensional accuracy and surface forming quality of steel balls.
High automation for continuous rolling lines

The system is equipped with PLC linkage interfaces, which can seamlessly connect Yuantuo steel ball hot rolling lines to realize automatic connection of feeding, heating and discharging & rolling without manual intervention. It ensures continuous production, reduces manual transfer and attendance, and cuts labor costs significantly.
Energy saving and low operation cost

The non-contact instantaneous heating mode requires no long-time preheating or heat preservation, with nearly zero energy consumption during standby. Minimal oxide scale is generated on blanks to reduce raw material burning loss, lowering both energy cost and material waste.

4 Core Key Components

1 Customized Induction Coil (Inductor)

As the core heat exchange part of the system, the structural size of the inductor is customized according to steel ball diameters to ensure uniform heating for single or multiple blanks at the same time. The coil is made of high-conductivity high-temperature resistant special materials and equipped with an independent closed cooling water circuit. The reasonable water channel structure continuously takes away heat generated during coil operation, extending coil service life and maintaining stable performance without deformation or damage under long-term continuous working conditions.

2 IGBT Intelligent Induction Heating Power Supply

Matched with self-developed Yuantuo IGBT intelligent heating power supply, it outputs stable controllable alternating current continuously. Magnetic field intensity, output power and operating frequency can be adjusted with one click according to steel ball specifications. Adopting dynamic voltage and current stabilization design, the equipment runs stably under load fluctuation and keeps heating temperature free of severe drift.

5 Application Scope

This induction heating system is specially supporting hot rolling production lines of small and medium steel balls, widely applied in preheating before hot rolling for carbon steel, bearing steel and stainless steel ball blanks of various specifications. It meets mass production demands of ordinary steel balls for construction and engineering machinery, as well as strict preheating standards of high-precision steel balls for precision bearings and high-end equipment.

Driven by rapid expansion of precision machinery, wind power and new energy equipment industries, market demand for high-strength low-defect precision steel balls keeps rising. Induction heating shows comprehensive advantages over traditional furnaces and will be widely adopted in more thermal processing scenarios of spherical metal blanks in the future.

6 Daily Equipment Maintenance Tips

Establish a regular inspection and maintenance schedule: Regularly check the tightness of wiring terminals of induction coils, inspect water pipelines for leakage and blockage to guarantee smooth operation of cooling systems and prevent coil burnout caused by overheating.
Calibrate output parameters of IGBT heating power supply periodically and clean internal dust and scale to maintain stable output of power and frequency.
Inspect, replace and calibrate vulnerable core parts including coils, power modules and temperature sensors strictly according to maintenance cycles, so that the system can keep optimal heating performance for a long time and extend overall service life of the whole equipment.
