Description

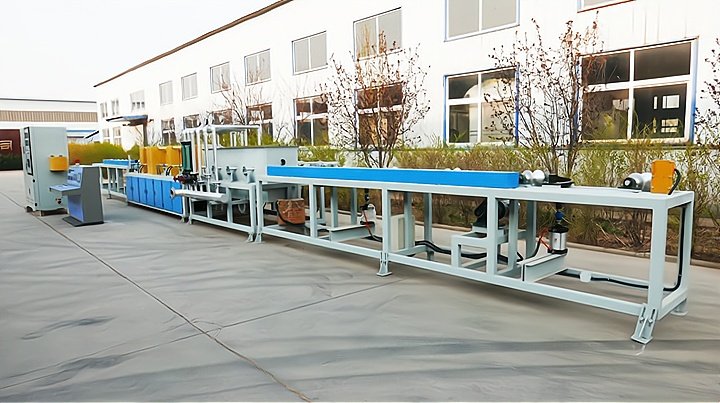

Yuantuo’s induction heat-treatment line is engineered for efficient heating, quenching, and tempering of wear-resistant grinding rods used in rod mills. Optimized for Ø50–140 mm diameters and 2.2–6.0 m lengths, the line delivers 1–3 t/h throughput to meet a range of production scales.
Primary Use
Quench-and-temper processing of rod-mill grinding bars to achieve high strength and excellent wear resistance for demanding industrial applications.
Power System
Power range: 350–1,000 kW @ 0.5–2.5 kHz
Configurable to production rate, grade, and section size.
Line Features
Precision Roller Geometry

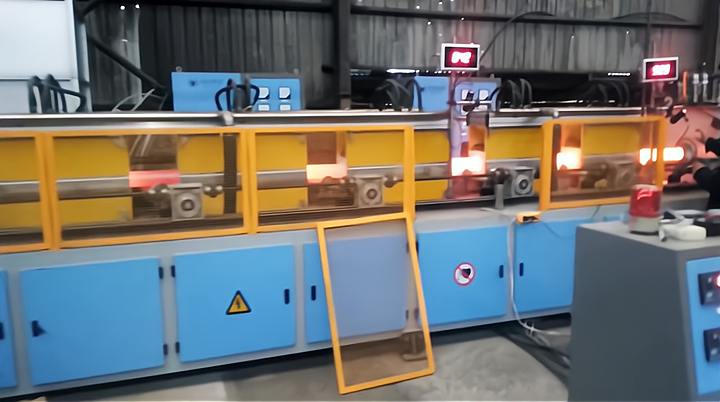

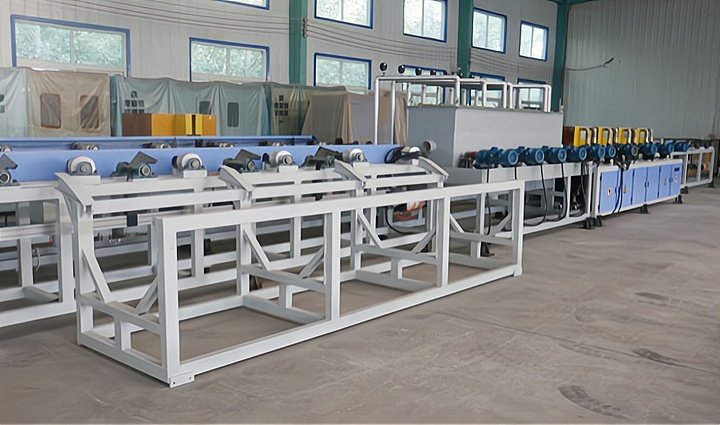

Conveyor rollers are set at a defined helix angle relative to the workpiece axis so each bar both rotates and advances uniformly. This ensures circumferentially even heating and consistent residence time.
- Rollers between inductors: non-magnetic 304 stainless steel with water cooling for stability and durability.
- Other roller sections: 45# (C45) steel with surface hardening to extend service life.
Independently Controlled Sections
Infeed, inductor, and outfeed groups are each controlled independently. This minimizes inter-part gaps, stabilizes continuous heating, and improves overall line productivity.
Accurate, Closed-Loop Temperature Control

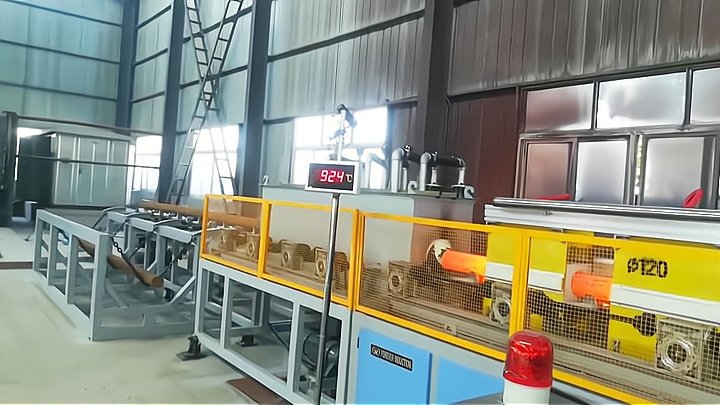

Infrared pyrometers integrated with a PLC provide closed-loop control of quench and temper temperatures. Tight control delivers target hardness and mechanical properties part after part.
Industrial PC (IPC) Smart HMI
Real-time display of operating parameters with recipe memory, data storage, print/export, fault indication, and alarm functions—simplifying monitoring, traceability, and maintenance.
Yuantuo Technical Advantages
High-Efficiency Induction Heating
Advanced power electronics and control deliver rapid, uniform through-section heating, improving takt time while helping to reduce specific energy consumption.
Custom Line Engineering
Each line is configured to customer requirements—grade mix, size range, takt time, and plant layout—to align with the exact process route and cost targets.
Robust Process Adaptability
Designed for stable operation under variable utility conditions and special process specifications, supporting consistent quality even where power supply is less stable.
Global Support & Service
Comprehensive after-sales coverage—installation, commissioning, operator training, long-term technical support, and spare-parts service—keeps your equipment running reliably and continuously improves your process.
Choose Yuantuo’s induction heat-treatment line to achieve efficient, reliable processing of grinding rods.
Contact us for a detailed quotation and a customized engineering proposal.
