Description

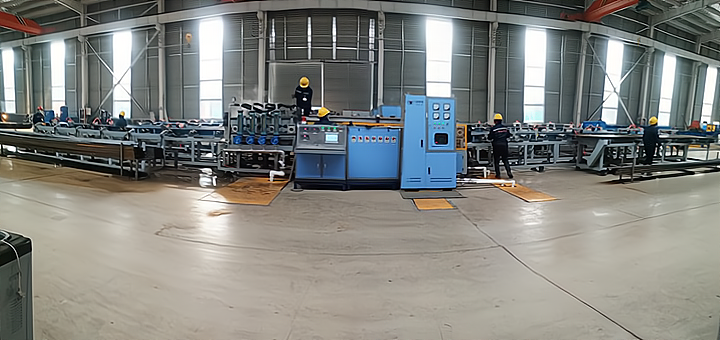

Yuantuo’s induction quenching line is engineered for thin-wall rectangular and square steel tubes, widely used in automotive lightweight structures—such as rectangular-tube bumper beams—and other applications requiring high strength and wear resistance. Advanced induction technology and a robust line layout deliver uniform heating, stable quench quality, and repeatable mechanical properties.
Power System
- Power range: 200–1,000 kW (configurable to production scale)
Workpiece Scope
Applicable to a wide range of rectangular and square tube sizes, including but not limited to:
- 30 × 50 mm
- 40 × 40 mm
- 20 × 20 mm up to 200 × 200 mm
Wall thickness: 1–10 mm
Line Advantages

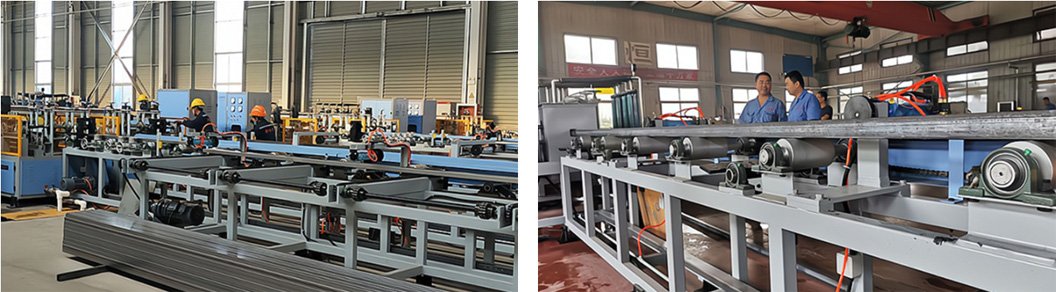

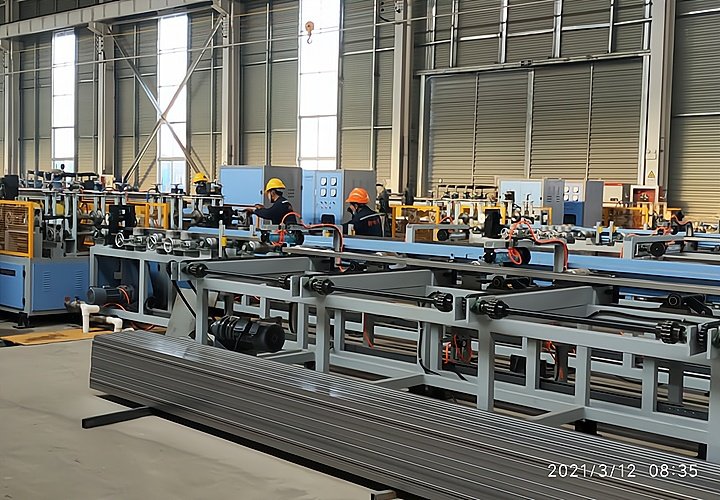

Conveyor Roller Design
- Between inductors: non-magnetic 304 stainless-steel rollers with water cooling for stable transport, efficient heating/cooling, and extended service life.
- Other roller sections: engineered for wear resistance and durability to suit continuous production.

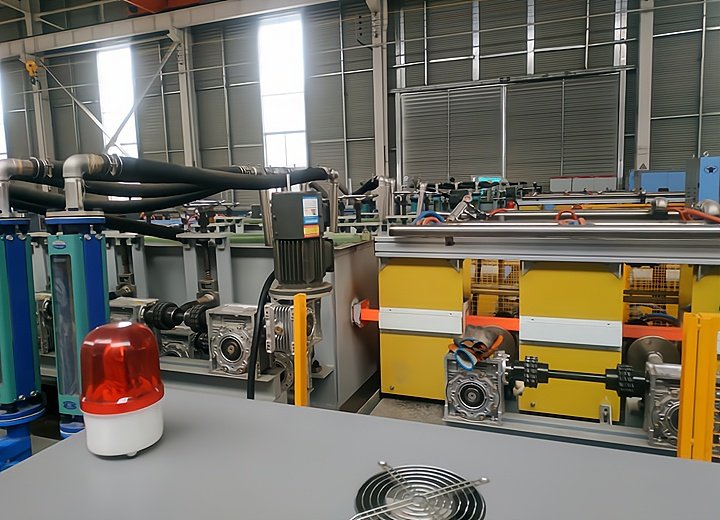

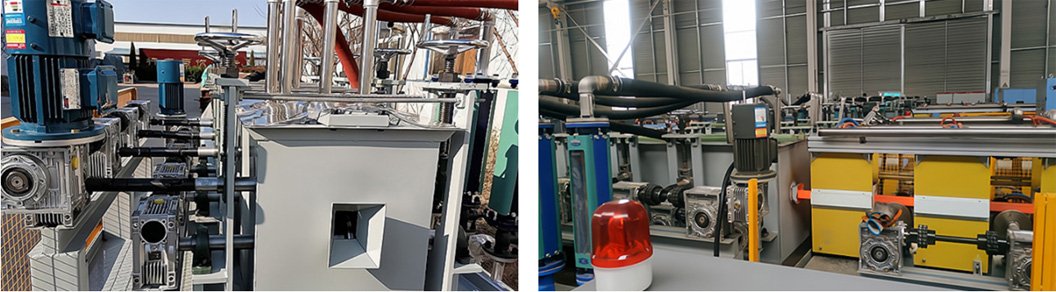

Independently Driven Feed Axes
Each feed axis uses its own motor–gear reducer with an independent VFD. Segment-wise speed control matches different process requirements (grade, size, wall thickness), improving stability, residence-time accuracy, and final part consistency.
Robust Recipe Management
The recipe system automatically recalls process parameters based on inputs such as steel grade, outside dimensions, and wall thickness—reducing manual error, shortening changeovers, and sustaining throughput.
Multi-Loop Automatic Control
For sites with unstable utilities, the system incorporates high-grade temperature/voltage control loops. It maintains target setpoints and process consistency even with ±20% mains-voltage fluctuation.
Efficient Induction Quenching
Rapid, uniform induction heating ensures stable quench quality, enhancing strength and wear performance while supporting tight dimensional control.
Why Choose Yuantuo
20 Years of Industry Experience
Over two decades in induction-heating equipment ensure mature technology and dependable product quality. We focus on professional, application-driven heat-treatment solutions for global customers.
Customized Engineering
Lines are tailored to your specific sizes, grades, takt time, and plant layout—aligning the equipment with your exact process route to improve efficiency and product quality.
Global Market References
Extensive deployments in Russia and other international markets, recognized by customers worldwide for reliable performance and responsive service.
Comprehensive After-Sales Support
End-to-end support—from installation and commissioning to operator training, long-term technical assistance, and spare-parts supply—keeps your line running stably and helps lower operating costs.
Choose Yuantuo’s quenching line for efficient, stable heat treatment of square and rectangular steel tubes.
Contact us for a customized proposal and detailed quotation.
