In the field of grinding media manufacturing, the quality and production cost of wear-resistant steel balls directly impact the operational efficiency of downstream industries such as mining, cement, and metallurgy. A stable, efficient, and energy-saving heat treatment production line is the core guarantee of product quality. Hebei Yuantuo Electromechanical Equipment Manufacturing Co., Ltd., leveraging its profound expertise in induction heating technology, constructs heat treatment production lines for wear-resistant steel balls. With their professional design and reliable performance, these production lines have become a trusted choice in the industry.

I. Rigorous Design: Laying a Solid Foundation for Reliability

This production line is specifically designed for the heating process of φ70mm and φ80mm round steel (suitable for producing φ100-125mm wear-resistant steel balls). Ensuring reliability from the source, it exhibits strong environmental adaptability, capable of stable operation within a wide temperature range of -25°C to 45°C. Manufactured in strict compliance with national and industry standards such as 《GB/T 10067-2015》, it guarantees a solid foundation for the long-term operation of the equipment.

II. In-Depth Analysis of Core Technology Modules

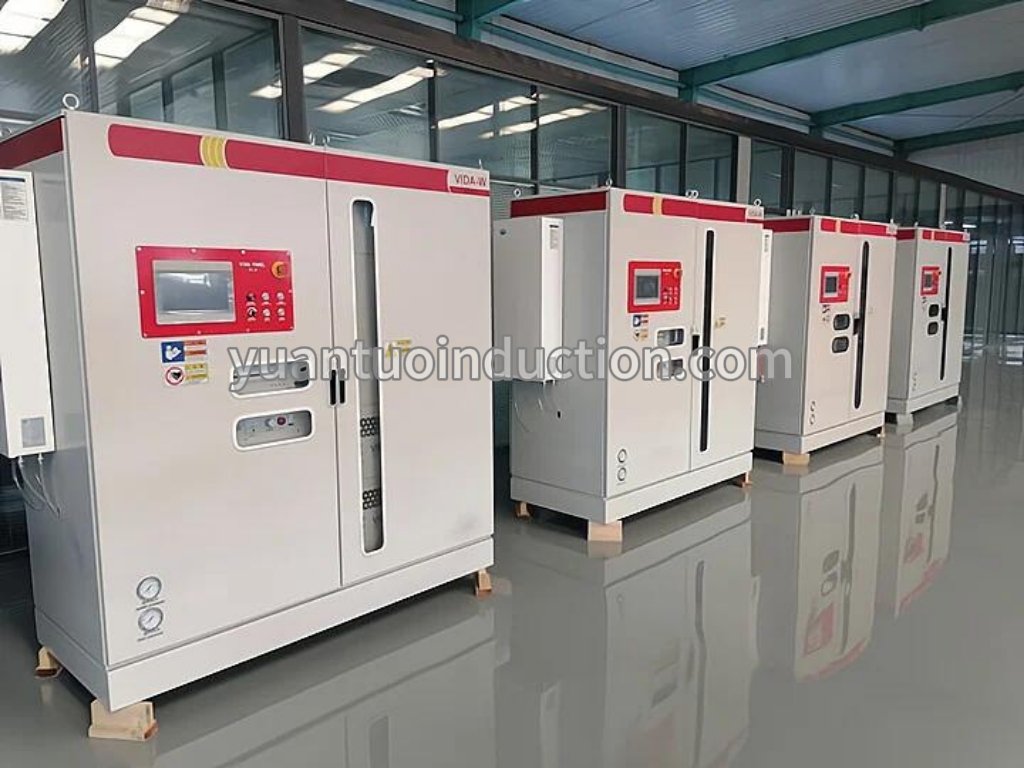

1. Intelligent Medium-Frequency Power Supply System: Balancing Precision and Energy Efficiency

The production line adopts a segmented power configuration (500kW + 500kW + 750kW), with a total power not exceeding 1750kW. This design enables precise adjustment of heating power for different specifications of steel billets, avoiding energy waste and offering greater energy-saving advantages compared to traditional heating methods. The optimized circuit layout, dual-integral water-cooled reactors, and the application of high-standard T2 red copper busbars collectively ensure the high efficiency, stability, and long service life of the power supply system.

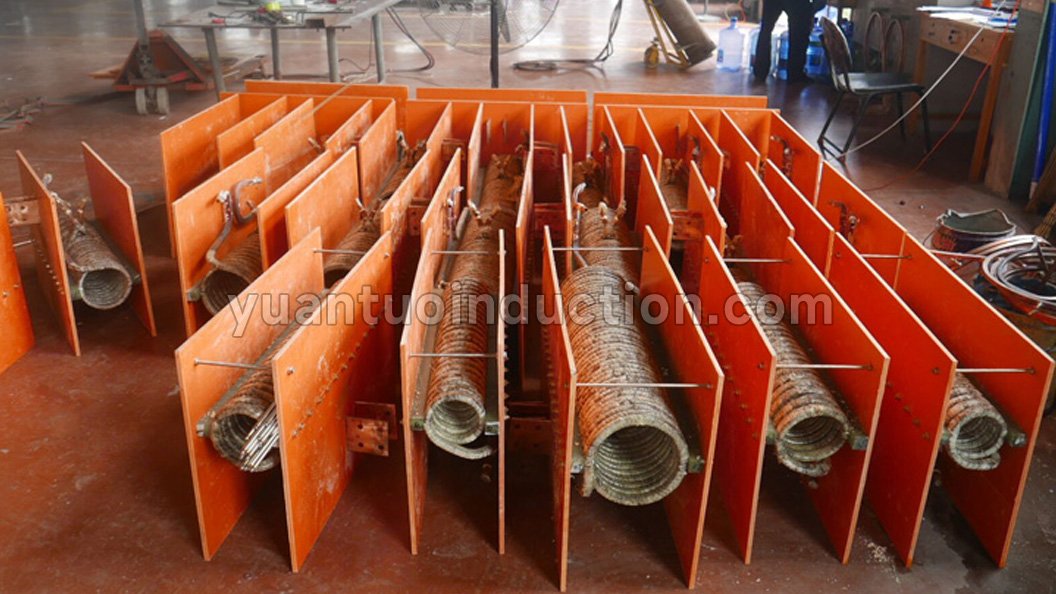

    2 High-Durability Heating Furnace Body: Ensuring Continuous Production

Dedicated furnace bodies are equipped for the two specifications of round steel. The core utilizes specially extruded copper tubes with an electrical conductivity exceeding 98%, ensuring efficient electrical energy conversion. The furnace lining employs special ramming material with a designed service life exceeding 6 months, significantly reducing the frequency of shutdowns for maintenance. Modular design and the use of quick connectors make furnace body maintenance and replacement more convenient and faster, effectively improving the overall equipment utilization rate

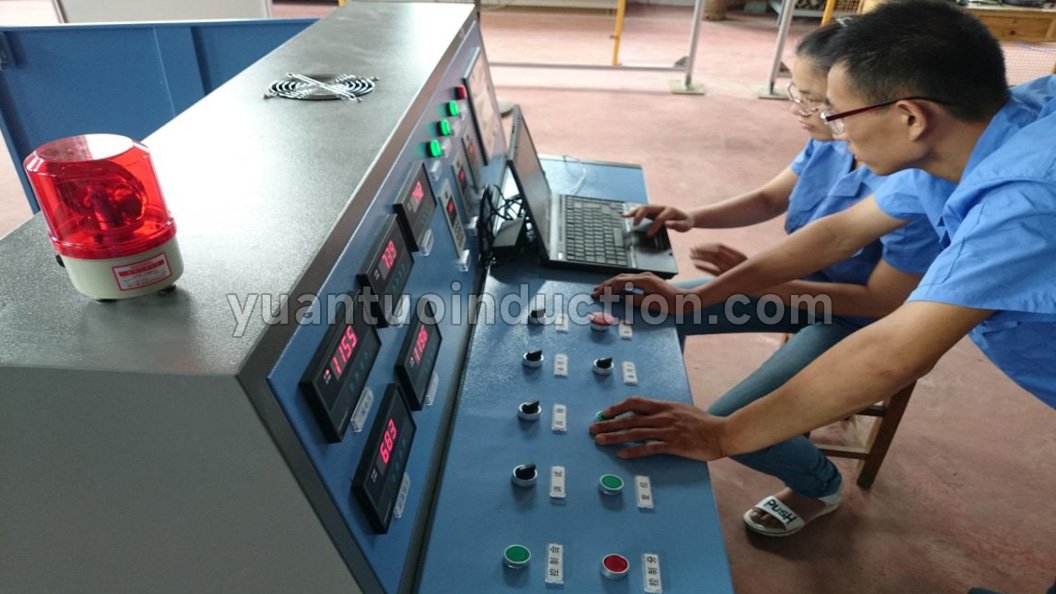

   3.  Full Automatic Control System: Achieving Visual Process Management

The entire line is centered around a Siemens S7-1200 PLC and touchscreen, building a centralized control and monitoring platform. The system can display and record key data such as heating temperature and operating status in real-time, enabling traceability and precise control of the process. From automatic feeding to power output, automated operation reduces human operational variances, ensuring consistency in product heat treatment quality.

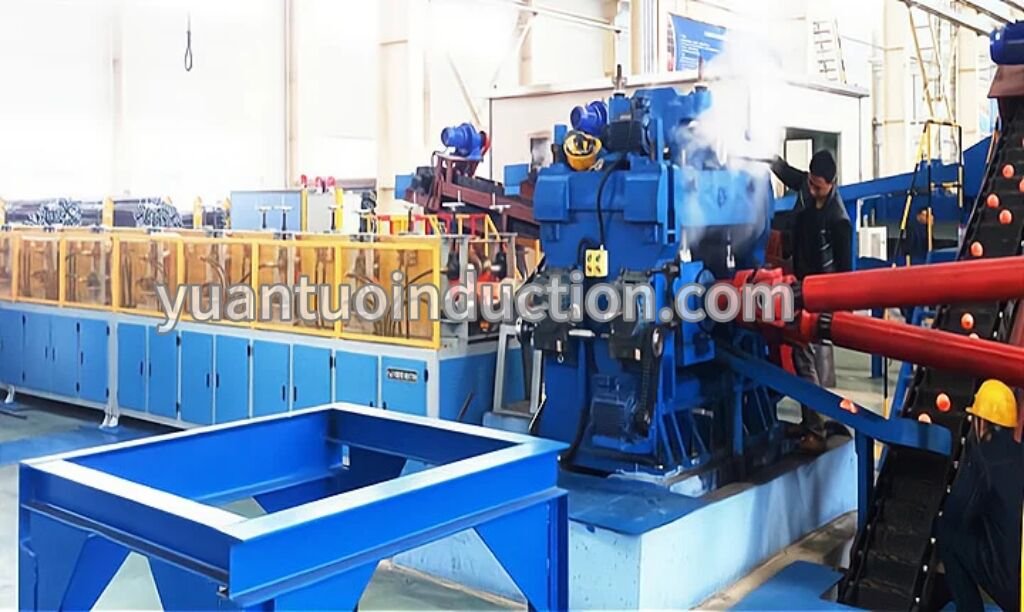

    4. Robust and Efficient Mechanical Structure: Streamlined Material Flow Design

The mechanical part of the production line is rationally laid out, including a large-capacity storage rack, automatic steel lifting and feeding mechanism, chain transmission device, and no-material detection function. The compact frame design of approximately 8 meters × 1.5 metersintegrates components such as capacitors, resulting in a stable structure. This design ensures smooth and reliable handling of round steel from storage and transportation to heating, meeting the demands of continuous production.

III. Core Value Created for Customers

Yuantuo Electromechanical delivers not just individual equipment, but a comprehensive solution committed to enhancing customer competitiveness:

• Reduced Energy Consumption: Intelligent power control directly lowers production costs.

• Enhanced Quality: Uniform and precise heating provides ideal conditions for quenching, improving the comprehensive wear resistance of steel balls.

• Production Assurance: High reliability and convenient maintenance design ensure the continuity and stability of the production line.

• Intelligent Management & Control: Simplifies operational procedures and realizes digital and standardized production management.

Hebei Yuantuo Electromechanical Equipment Manufacturing Co., Ltd. is always committed to applying advanced and reliable induction heating technology across various industrial sectors. This heat treatment production line for wear-resistant steel balls is the crystallization of our technological accumulation and market insight, aiming to help every customer solidify their manufacturing foundation and achieve long-term development.
