For slab and wide-section materials, temperature uniformity before the next process step is often the difference between stable rolling and costly variability.
This post shares real Yuantuo workshop footage of a slab temperature equalizing system build: heating section, layout staging, monitoring points, and control cabinet readiness before shipment.
If you are evaluating suppliers, these are practical checkpoints most buyers verify during a factory visit.

Slab temperature equalizing is different from general reheating.
Because slabs are wide and heavy, temperature gradients can be harder to control, and line layout/handling becomes a major part of stability.

That’s why Yuantuo prepares slab equalizing systems as a complete package: heating section + layout staging + monitoring points + control readiness.
We also publish real factory footage from our workshop—so buyers can see real equipment, real build steps.

In today’s update, you can see how we prepare a slab temperature equalizing system before shipment.

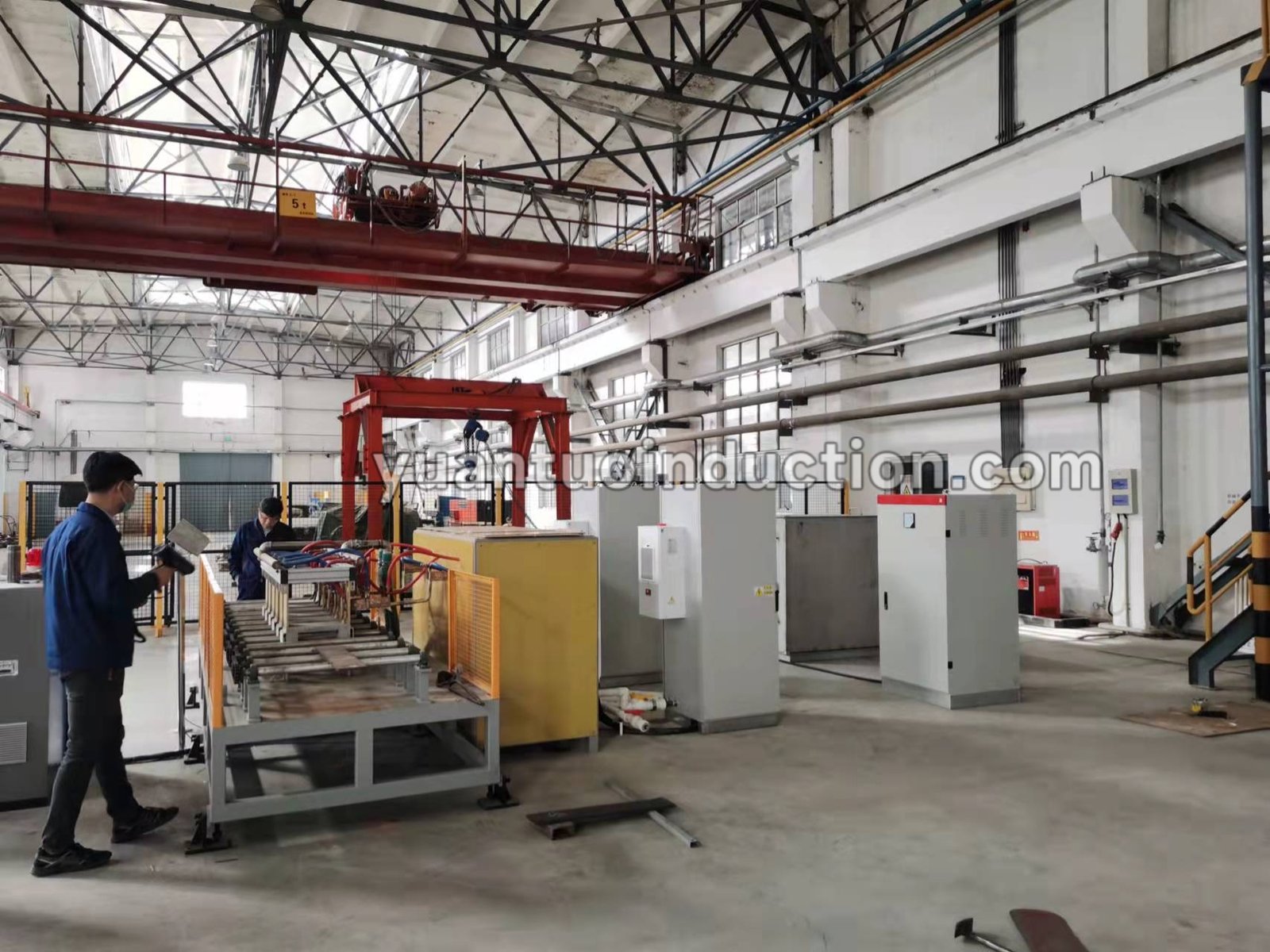

【Image 1｜Workshop Overview (Slab System Build)】

Heating section build for wide-section materials
During assembly, our team focuses on:
l heating section alignment along material flow
l coil/furnace section fixation and safe clearance
l cable routing discipline and labeling at the station

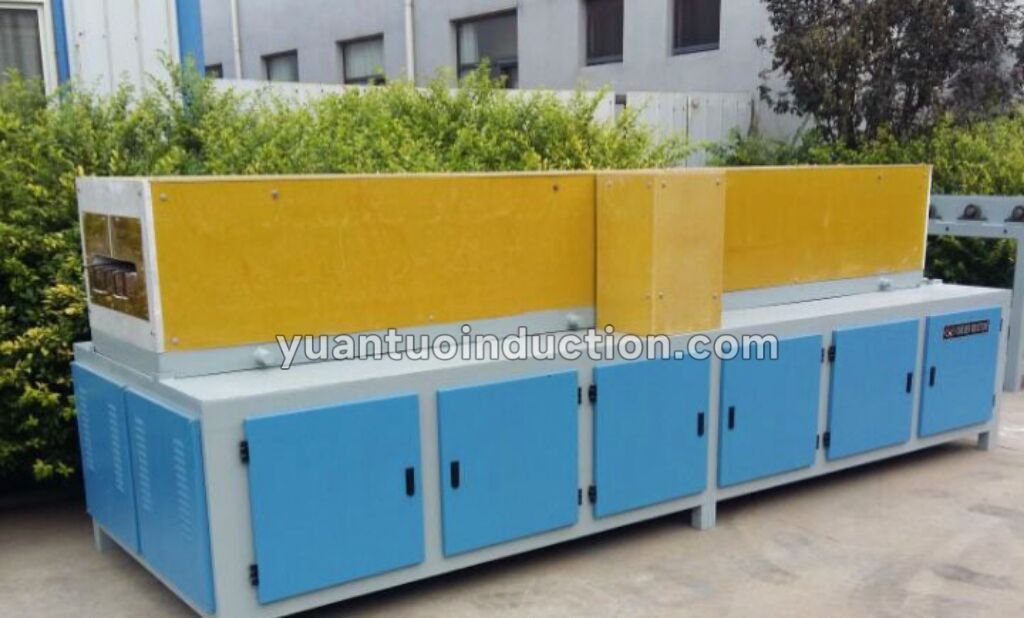

【Image 2｜Heating Section / Furnace Body for Slab】

Layout staging and handling readiness
For slab systems, layout matters. We prepare:
l staging based on planned line footprint and access
l handling interface points (in/out, guiding, rhythm)
l practical space for maintenance and inspection

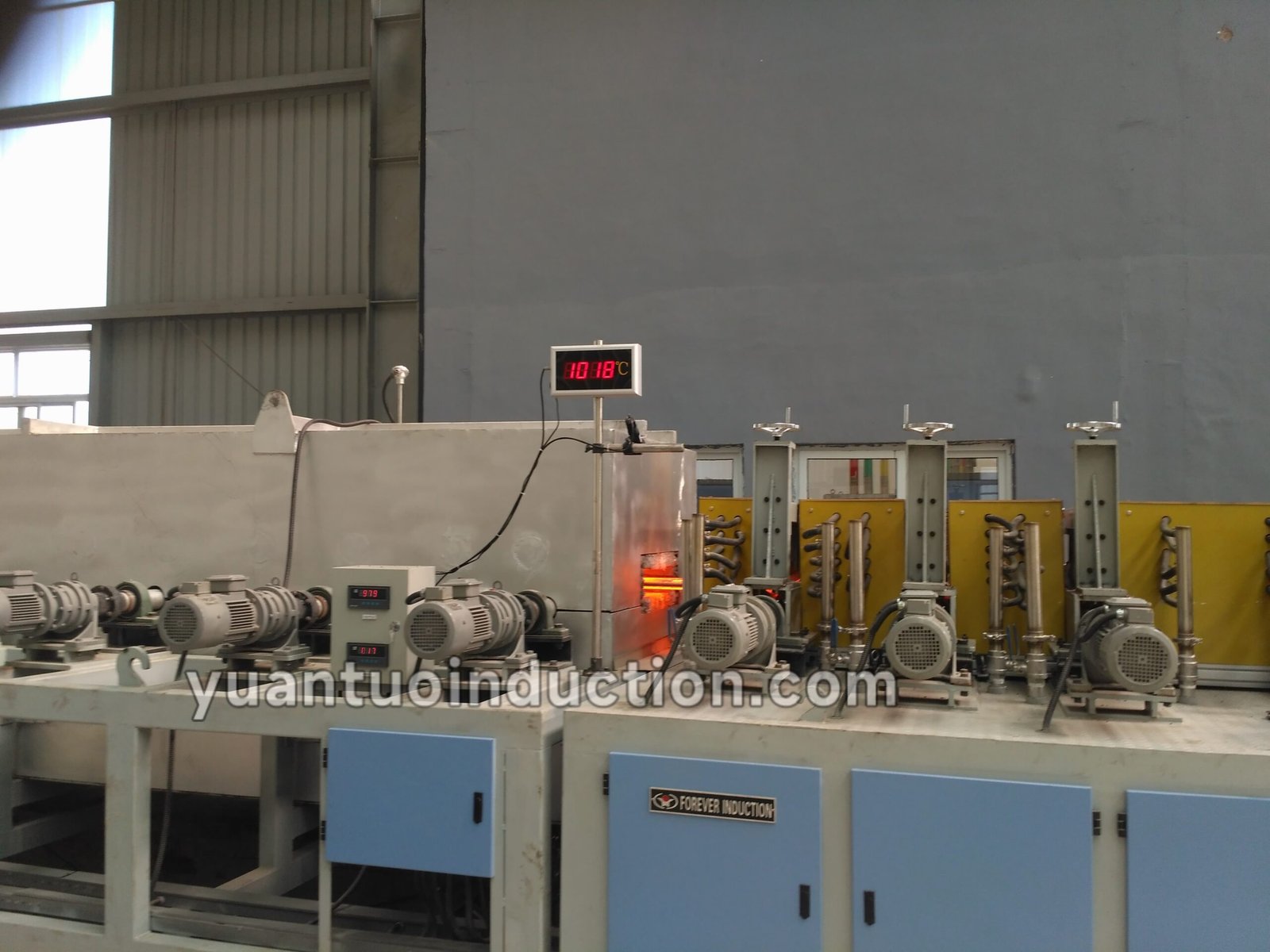

【Image 3｜Layout Staging / Handling Interfaces】 Monitoring points & control cabinet readiness
To support stable operation, we prepare:
l temperature monitoring points (as configured)
l PLC & HMI pages for status/trend monitoring
l protection, alarms, and fault-detection logic
【Image 4｜Monitoring / Control Cabinet / HMI Trend】[/caption]

These materials reflect how we build lines for different applications. You can explore related solutions here:
Product Catalog: https://yuantuoinduction.com/products
Workshop & Project Videos: https://yuantuoinduction.com/videos/
About Yuantuo: https://yuantuoinduction.com/about-us/

To size a slab temperature equalizing system properly, we usually need three inputs: slab cross-section & length, target temperature range, and throughput/line rhythm.
If you share these parameters, our engineer can recommend a suitable configuration and layout direction via:
https://yuantuoinduction.com/contact-us/
