For pipe heat treatment, stability is not finished at “target temperature”—cooling concept and control readiness decide repeatability.
This post shares real Yuantuo workshop footage of a steel pipe Q&T line build: induction heating section, cooling interfaces, cabinet setup, and readiness checks before shipment.
If you are evaluating suppliers, these are practical checkpoints most buyers verify during a factory visit.

When customers plan a steel pipe quench & temper line overseas, the key concern is not only heating power—it’s process stability.
In real production, pipe stability depends on three linked parts: induction heating, cooling synchronization, and closed-loop control readiness.

That’s why Yuantuo publishes real factory footage from our workshop.
In today’s update, you can see how we prepare a steel pipe Q&T line—from heating section build to cooling and control readiness—before shipment.

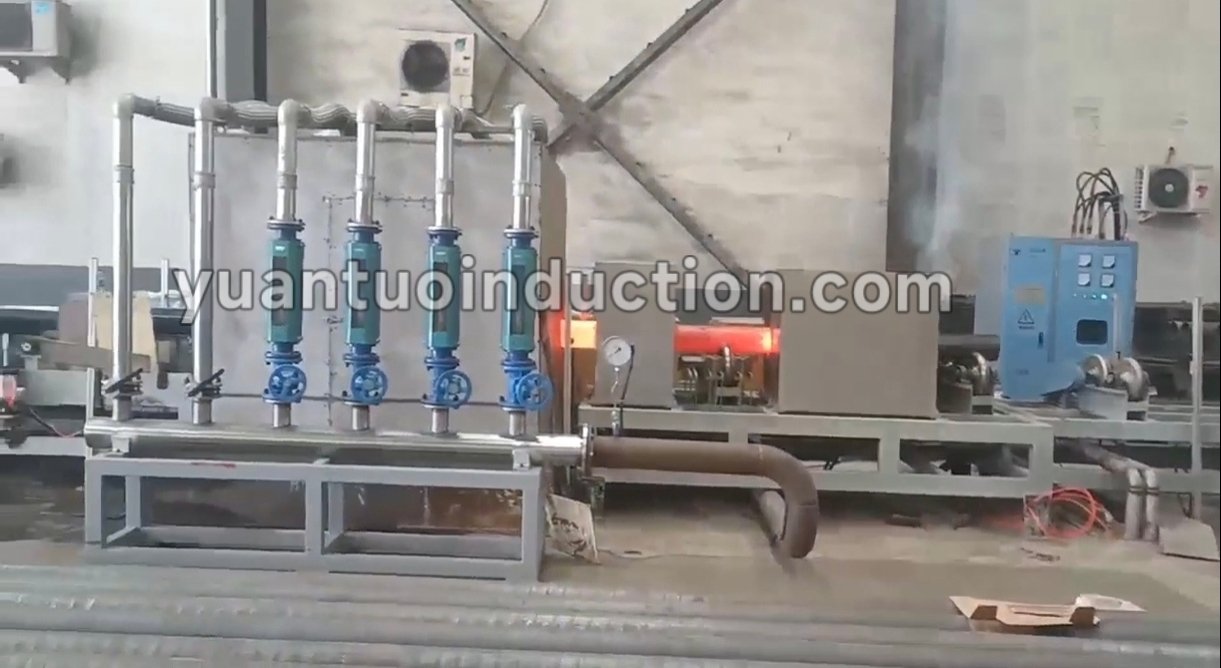

【Image 1｜Workshop Overview (Pipe Q&T Line Build)】

Induction heating section assembly (in-house)
During line build, our team focuses on:
l heating section alignment along the pipe centerline
l coil area setup and fixation
l cable routing discipline and labeling at the station

【Image 2｜Induction Heating Section / Furnace Body】

Cooling concept readiness (interfaces first)
Before shipment, we prepare cooling interfaces based on pipe OD, wall thickness, and quality targets, including:
l inlet/outlet interface positions and markings
l flow monitoring readiness (as configured)
l interlock logic for abnormal cooling conditions

【Image 3｜Cooling Interfaces / Monitoring Points】

Control cabinet setup for closed-loop stability
The control cabinet is built and wired in-house, including:
l PLC & HMI preparation for recipe and monitoring pages
l signal mapping and terminal labeling
l protection and fault-detection configuration

【Image 4｜Control Cabinet / HMI Panel】
