For steel plate heat treatment, consistent results depend on stable handling, uniform through-heating, and synchronized quench cooling—not only installed power.
This post shares real Yuantuo workshop footage of a steel plate through-heating & quench line build: heating section, handling alignment, cooling preparation, and control cabinet readiness before shipment.
If you are evaluating suppliers, these are practical checkpoints most buyers verify during a factory visit.

Steel plate heat treatment is a “system process.”
If plate handling is unstable, heating uniformity becomes hard to hold.
If cooling preparation is weak, distortion risk increases and repeatability drops.

That’s why Yuantuo prepares plate through-heating & quench lines as a complete package: handling alignment + heating section + cooling readiness + control cabinet preparation.
We publish real factory footage from our workshop so buyers can see real equipment and real build steps.

In today’s update, you can see how we prepare a steel plate through-heating & quench line before shipment.

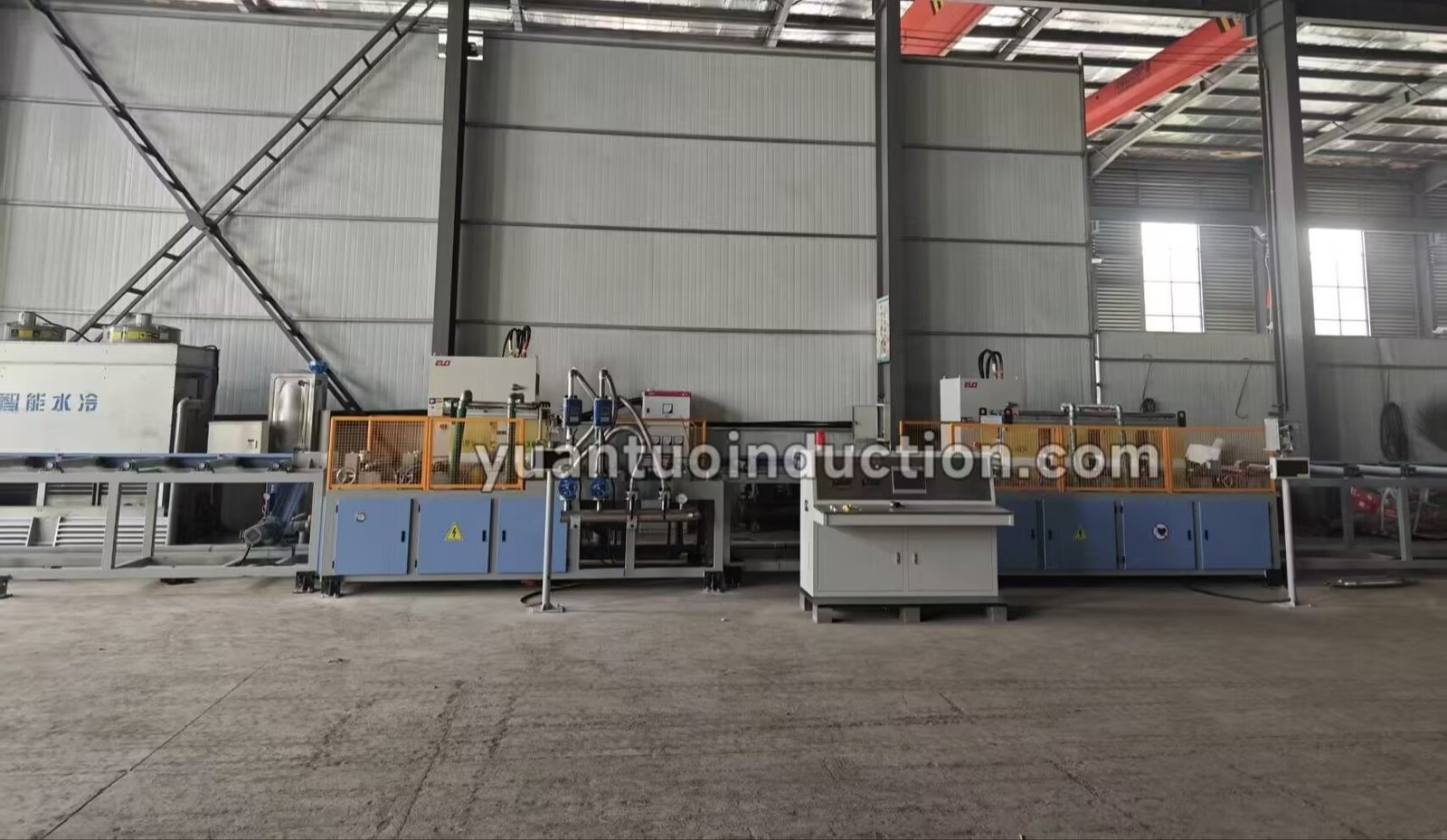

【Image 1｜Workshop Overview (Plate Line Build)】

Plate handling alignment and stability
During line build, our team focuses on:
l stable plate guiding and alignment along the path
l practical spacing and rhythm for continuous movement
l access for inspection and maintenance

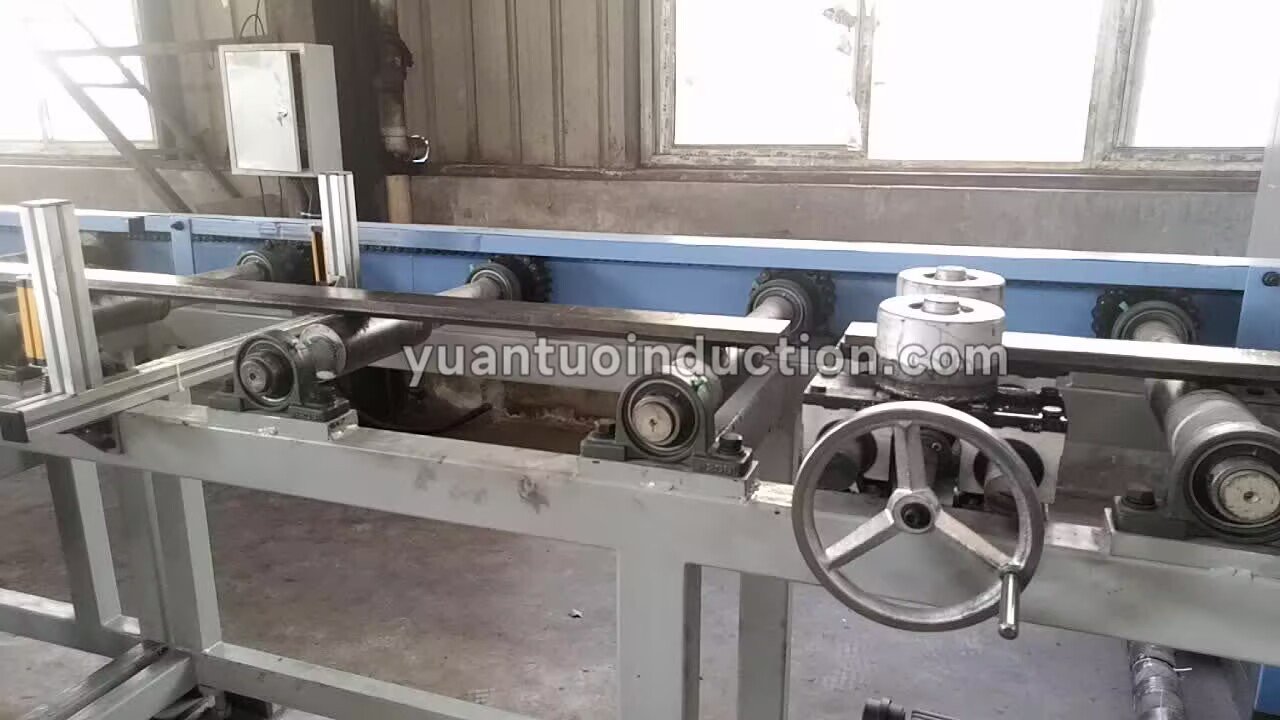

【Image 2｜Plate Handling / Guiding Section】

Through-heating section build (uniform heating readiness)
To support uniform heating, we verify:
l furnace/heating section alignment to plate flow
l coil/heating zone fixation and safe clearance
l cable routing discipline and labeling around the heating zone

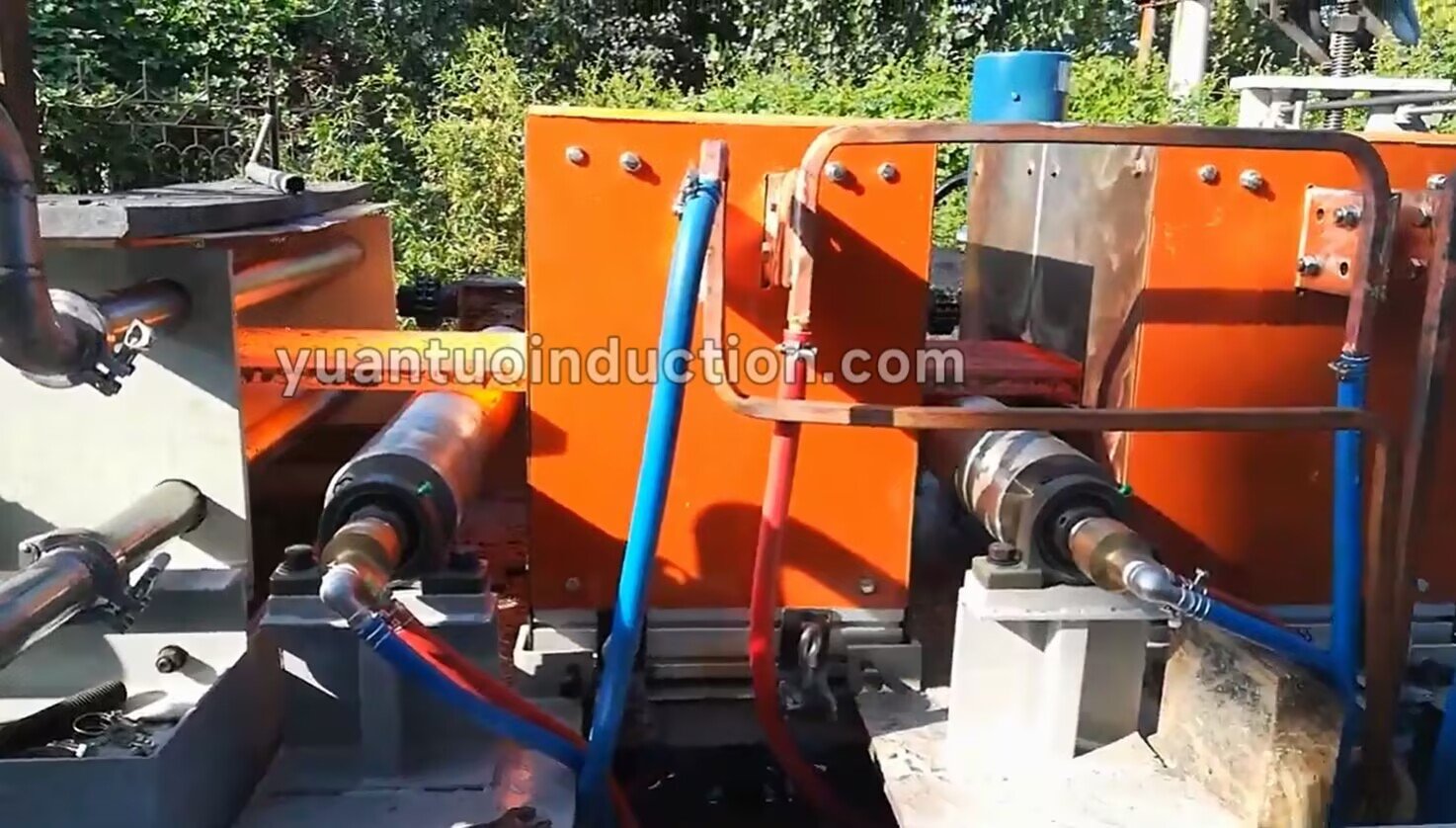

【Image 3｜Heating Section / Furnace Body】

Quench cooling preparation & control readiness
Before shipment, we prepare:
l cooling interfaces and monitoring points (as configured)
l interlocks and alarm readiness for abnormal cooling
l PLC & HMI pages for status, trending, and protection

【Image 4｜Cooling / Control Cabinet / HMI Trend】

These materials reflect how we build lines for different applications. You can explore related solutions here:
Product Catalog: https://yuantuoinduction.com/products
Workshop & Project Videos: https://yuantuoinduction.com/videos/
About Yuantuo: https://yuantuoinduction.com/about-us/

To size a steel plate through-heating & quench line properly, we usually need three inputs: plate width/thickness/length, target temperature range, and throughput/line rhythm.
If you share these parameters, our engineer can recommend a suitable configuration and layout direction via:
https://yuantuoinduction.com/contact-us/
