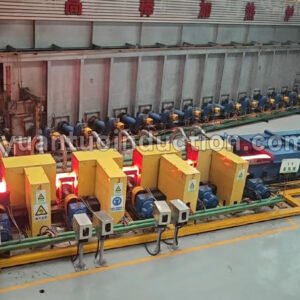

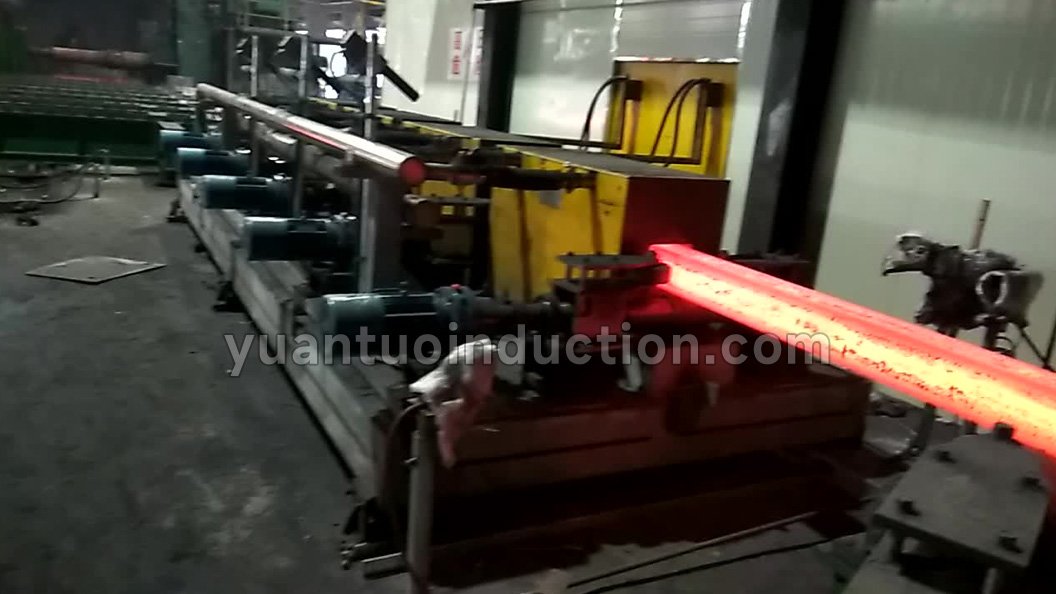

Description
A billet heating furnace is essential equipment in steel rolling production, used to heat steel billets to the required rolling temperature.
In modern steel plants, different types of billet heating solutions are applied depending on process requirements, including induction billet heating furnaces, electric heating systems, and other billet heating equipment.
Compared with traditional fuel-fired systems, a new type of electric billet heating furnace offers higher efficiency, better temperature control, and cleaner production.
🔹 Challenges of Traditional Billet Heating Furnace
Conventional billet heating equipment based on gas or coal combustion still dominates many production lines. However, such billet heating devices often face several limitations:
* ❌High energy consumption
* ❌Significant oxidation loss
* ❌Long heating cycles
* ❌Inconsistent temperature distribution
These issues directly affect both production efficiency and final product quality.
🔹 Induction Billet Heating Furnace Solution
The billet induction heating furnace uses electromagnetic induction to heat billets rapidly and uniformly.
Unlike traditional billet heating devices, this type of electric billet heating furnace converts electrical energy into heat within the billet itself, rather than relying on external combustion.
As a result, it is widely regarded as a more advanced billet heating solution in modern steel production.
🔹 Advantages of Induction Billet Heating Equipment
✅ 1.Higher Energy Efficiency
Compared with conventional billet heating furnaces, electric billet heating equipment can achieve significantly higher energy utilization.
✅ 2.Reduced Oxidation Loss
The controlled heating environment of a billet heating electric furnace helps reduce surface oxidation.
✅ 3.Faster Heating
Induction-based billet heating equipment allows much shorter heating cycles.
✅ 4.Stable Temperature Control
Modern billet heating devices are equipped with PLC-based closed-loop systems for precise temperature regulation.
✅ 5.Cleaner Production
As a new type of billet heating furnace, induction systems eliminate combustion-related emissions.
🔹 Applications
This billet heating equipment is suitable for:
* Continuous casting and rolling lines
* Steel bar and wire rod production
* Carbon steel and alloy steel billets
* Square billets, round billets, and pipe billets

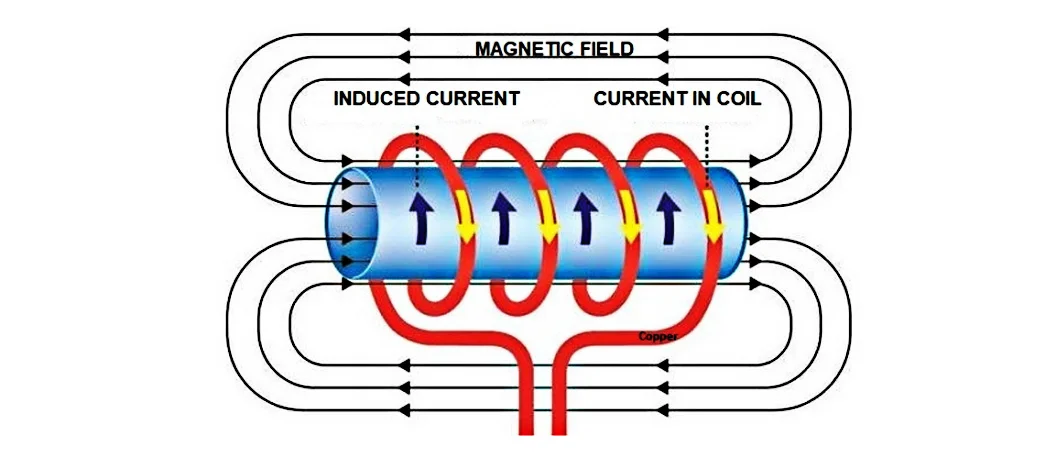

🔹 Working Principle of Billet Heating Furnace
The billet heating electric furnace operates by converting AC power into medium-frequency current, which flows through an induction coil.
This creates a magnetic field that induces eddy currents inside the billet, causing it to heat up internally.
Compared with conventional billet heating devices, this method provides faster and more uniform heating.
🔹 Technical Specifications
* Power: 1000–12000 kW
* Frequency: 500–1200 Hz
* Capacity: 40–300 tons/hour
* Billet size: 60–200 mm
* Length: 3–12 meters
* Energy consumption: 40–110 kWh per ton

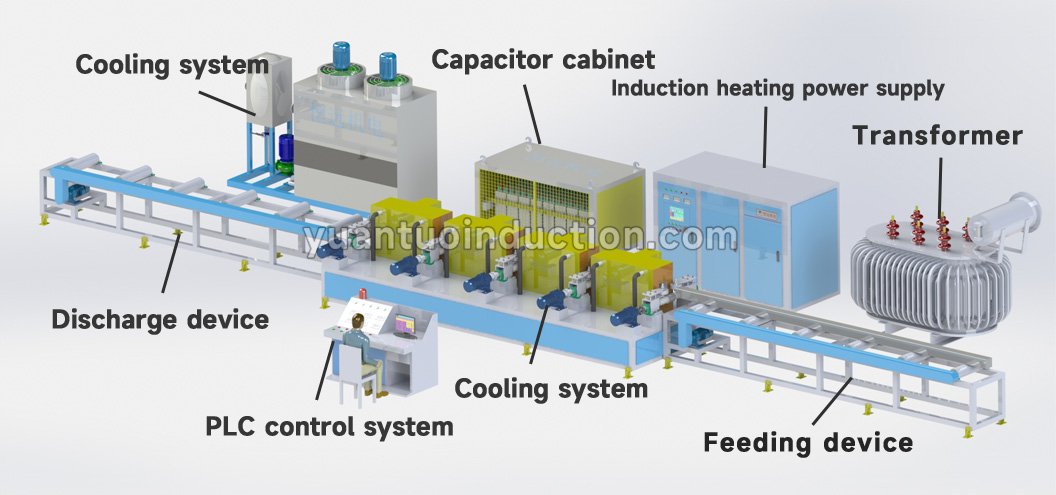

🔹 System Components
* Induction power supply
* Heating coil system
* Billet conveying system

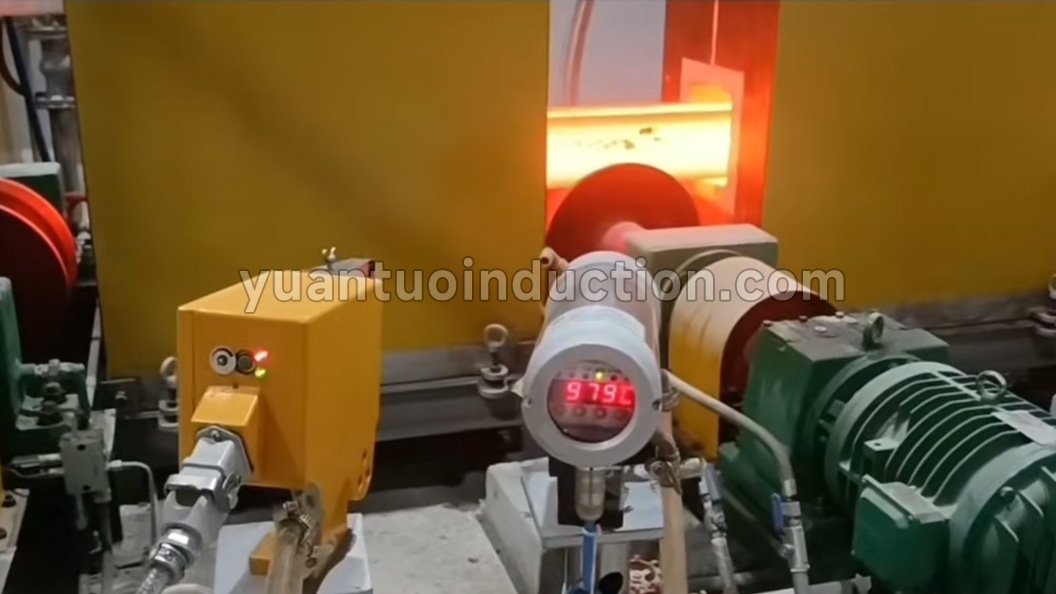

* Infrared temperature measurement system
* PLC control system (e.g., Siemens)
🔹 Conclusion
With the increasing demand for efficiency and sustainability, the billet induction heating furnace is becoming a preferred choice in steel plants.
As a modern billet heating device, it provides a reliable, energy-saving, and high-performance alternative to traditional billet heating furnaces.
