Description
The screw rod tempering equipment from Hebei Yuantuo Electromechanical is designed for precision rods, piston rods, and automotive torsion rods, integrating medium-frequency induction heating, quenching, tempering, and straightening in a fully automated line.
Also referred to as screw rod tempering machine, piston rod tempering equipment, or precision rod heat treatment furnace, it delivers uniform hardness, optimal toughness, and repeatable mechanical properties for industrial-scale production.
🔹 Key Process Capabilities
* Continuous induction heating and tempering for screw rods, piston rods, and torsion rods
* End-face and surface tempering for high-wear areas
* Uniform hardness along the rod length and diameter
* Automated quenching and tempering controlled by PLC/HMI
* Continuous rotation and forward feed for even heat treatment
* Adjustable for rod diameters and lengths (Φ16–85 mm, up to 6 m)
🔹 Production Line Overview

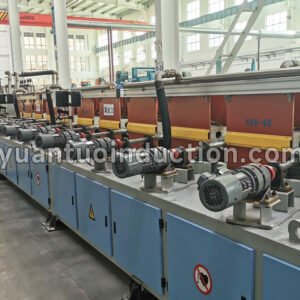

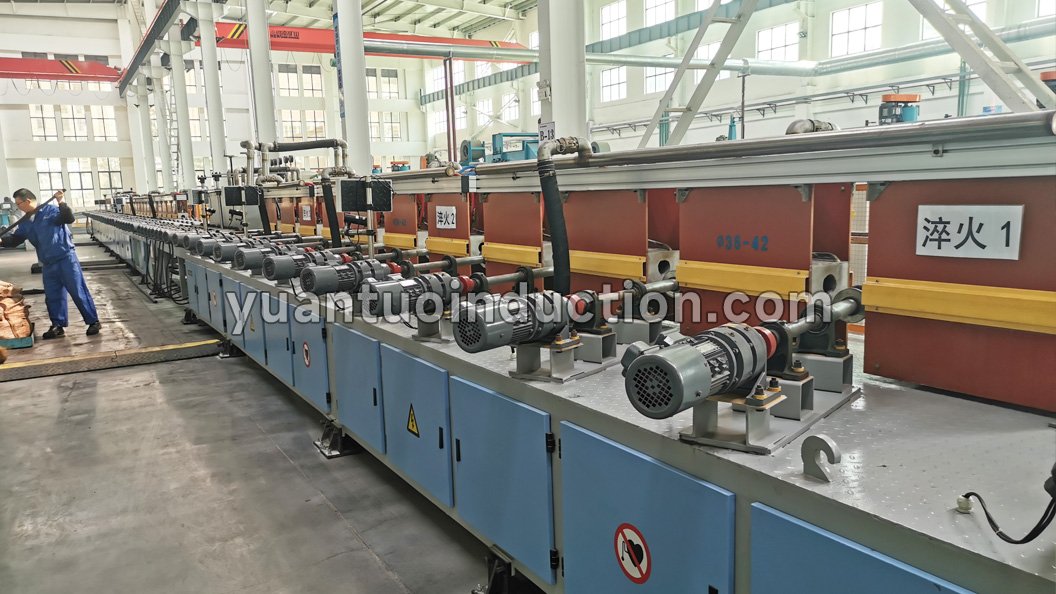

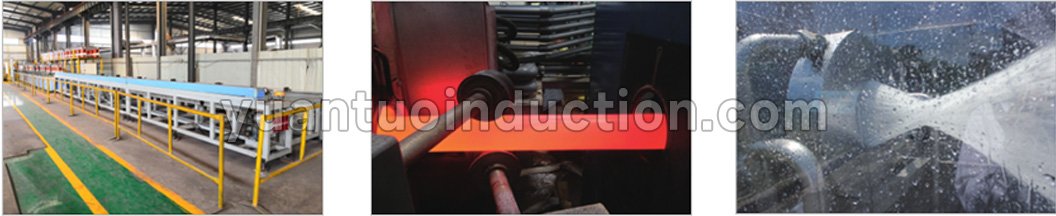

The precision rod tempering line is engineered as a single integrated system, combining:
* Rod loading and feeding mechanism
* Medium-frequency induction heating module
* Quenching section for surface and end-face hardening
* Tempering section for mechanical property optimization
* Straightening module for dimensional accuracy
* Cooling and discharge system
> This layout enables full-process automation from loading to discharge, eliminating the need for additional separate furnaces or straightening machines, suitable for Lead Screw Quenching and Tempering Production Line and Piston Rod Medium-Frequency Quenching Machine applications.
🔹 Key Equipment Features
✅ Medium-Frequency Induction Coils – adjustable for different rod diameters and lengths
✅ Rotational Conveying Rollers – ensure uniform heating along the rod
✅ Spray Quenching System – precise surface and end hardening
✅ Tempering Module – controlled to achieve desired toughness
✅ PLC/HMI Control – automated recipe management, temperature monitoring, and power adjustment
✅ Cooling System – closed-loop for consistent results
✅ Automatic Feeding & Discharge Racks – heavy-duty and stable for high-throughput operation
> This optimized combination of modules ensures precision, energy efficiency, and high repeatability, meeting the demands of Piston Rod Quenching and Tempering Heat Treatment Furnace and Automotive Torsion Bar Quenching and Tempering Equipment.
🔹 Technical Parameters
* Heating temperature: up to 950°C
* Tempering temperature: 600–650°C
* Diameter: Φ16–85 mm (solid/hollow rods)
* Length: up to 6 meters
* Production capacity: 0.5–3 tons/hour
* Medium-frequency adjustable
* Full automation with PLC/HMI control
🔹 Core Strengths
✅ Integrated heating, quenching, tempering, and straightening
✅ Uniform hardness from surface to core
✅ High automation for continuous operation
✅ Energy-efficient medium-frequency induction
✅ Compatible with precision rods, piston rods, and automotive torsion rods
✅ Built by Hebei Yuantuo Electromechanical for industrial reliability
The screw rod & piston rod tempering equipment provides:
* Fully automated Q&T and straightening
* Consistent hardness and mechanical properties
* Continuous high-volume production
* Precision end-face and surface tempering
For industrial manufacturers seeking a reliable, automated precision bar stock heat treatment system, Hebei Yuantuo’s screw rod quenching and tempering equipment is undoubtedly your ideal solution.
