Description
A bar quenching furnace is widely used in steel processing to perform quenching heat treatment for round bars, shafts, and rod materials.
Also known as bar quenching equipment, bar heat treatment quenching furnace, or bar induction hardening system, it is designed to achieve uniform hardness, controlled microstructure, and stable mechanical properties.
In modern production, induction heating-based quenching systems are increasingly used due to their fast heating speed, precise temperature control, and high efficiency.
🔹 Challenges in Bar Heat Treatment
In conventional heat treatment processes, steel bars often face:
* Uneven hardness along the length
* Large temperature fluctuations during heating
* Surface oxidation and decarburization
* Low production efficiency
* Difficulty maintaining consistency between batches
For example, achieving uniform hardness within a range of only a few HRC across the entire bar is a common requirement in industrial applications
🔹 Induction Bar Quenching Furnace Solution
The bar quenching furnace based on electromagnetic induction provides a highly controlled heating and quenching process:
* Rapid heating to quenching temperature (e.g., ~950°C)
* Controlled cooling using spray quenching systems
* Continuous processing for high production efficiency
This type of bar quenching heat treatment equipment enables online heating, quenching in one integrated system.
🔹 Advantages of Bar Quenching Equipment
* ✅Fast heating speed
Induction heating can complete heating in seconds, improving efficiency
* ✅Uniform hardness and microstructure
Ensures consistent hardness distribution along the bar
*✅ Reduced oxidation and decarburization
Heat is generated inside the material, minimizing surface damage
*✅ High automation level
PLC-controlled systems enable fully automatic operation
*✅ Flexible processing range
Suitable for various bar diameters and materials
*✅ Energy-efficient and environmentally friendly
Lower energy consumption compared to traditional heating methods
🔹 Process Flow of Bar Quenching Furnace

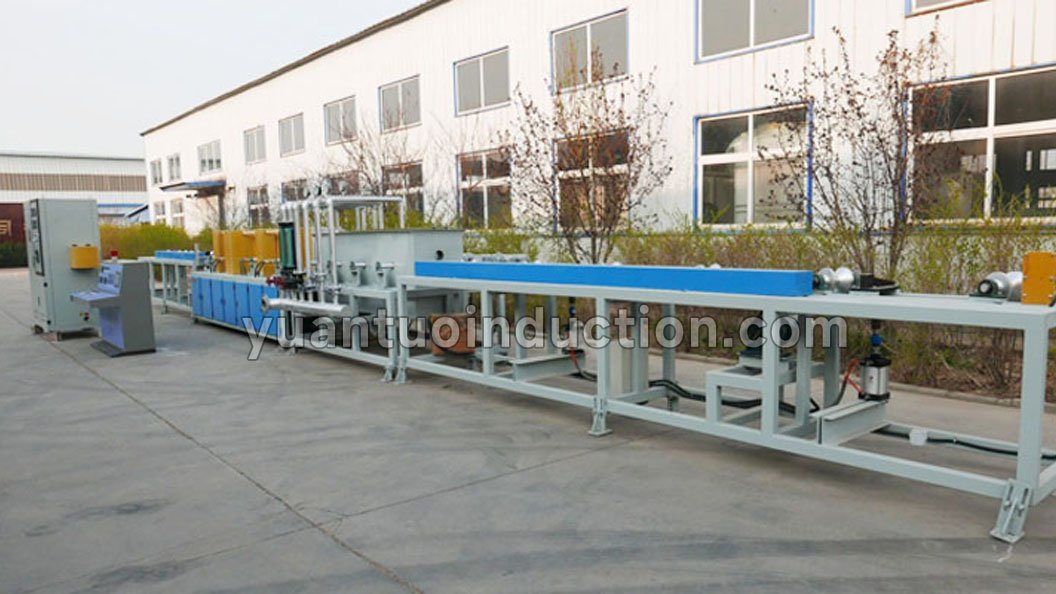

A typical bar quenching system includes:
1. Automatic feeding system
2. Induction heating section
3. Temperature measurement (infrared sensors)
4. Spray quenching system
5. Optional tempering section
6. Discharge and cooling
This integrated process ensures continuous and stable heat treatment production.
🔹 Technical Specifications
* Heating temperature: ~950°C (quenching)
* Bar diameter range: 20–150 mm
* Length: 2–9 meters
* Production capacity: 2 tons/hour (depending on size)
* Power range: 160–8000 kW
* Frequency: 100 Hz – 8000 Hz
🔹 System Components
* Induction heating power supply
* Induction coil system
* Feeding and conveying system
* Spray quenching system
* Infrared temperature measurement system
* PLC control system (e.g., Siemens)
* Cooling water system
🔹 Applications
The bar quenching furnace is suitable for:
* Round bars and steel rods
* Shafts and hydraulic rods
* Alloy steel and carbon steel materials
* Mechanical components requiring heat treatment
🔹 Key Process Control
Modern bar quenching furnaces ensure:
* Hardness uniformity within tight tolerance ranges
* Stable temperature control through closed-loop systems
* Repeatable process parameters for consistent production
This is critical for achieving mechanical performance requirements such as strength, toughness, and wear resistance
The bar quenching furnace (also known as bar quenching equipment, bar heat treatment quenching furnace, or rod quenching system) provides:
* Fast and uniform heating
* Stable quenching and tempering processes
* Reduced oxidation and energy consumption
* High automation and production efficiency
It is an essential solution for modern steel plants and heat treatment workshops aiming for high-quality, consistent, and efficient bar heat treatment.
